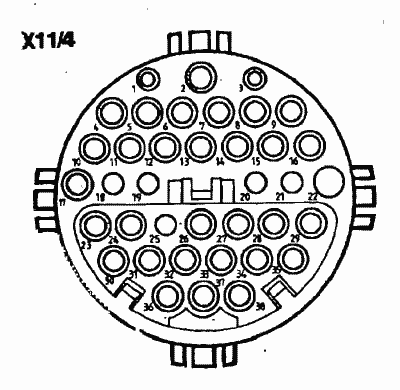

SAMPLE SEARCH 38 POLE CONNECTOR FOR MEMBERS

1 Ground, circuit 31 14 On-off ratio, Engine 119 LH-SFI,
Engine 120 LH-SFI (right)
2 Voltage, circuit 87 15 On-off ratio, Engine 120 LH-SFI (left)
3 Voltage, circuit 30 15 IC Instrument cluster
4 EDS Electronic diesel system 16 A/C Air conditioning, Models 124, 140, 202
4 DFI Electronic distributor-type fuel injection (Diesel)    17 DI Distributor ignition, Engines 104, 119,
4 IFI Electronic In-line fuel injection (Diesel) Engine 120 (right)
4 HFM-SFI   HFM sequential multiport fuel injection/ignition, 17 TD-speed signal (time division),
Engine 104 Model 140
4 LH-SFI LH sequential multiport fuel injection, 17 TN-speed signal, LH-SFI engines
Engines 104, 119 18 DI Distributor ignition, Engine 120 (left)
Engine 120 (right) 19 DM Diagnostic module
